- Size: 5.2*2.1*7.35
- Place of Origin: Jinan
- Brand Name: JANEOO
- Model Number: DPBJ-L
- Weight: 3900.000 kg

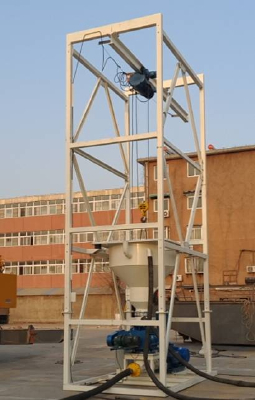

Technical Data of Continuous Bulk Bag Discharger
Model | DPBJ-L |
罗茨风机功率Roots blower power | 30kW |
气力输送系统供料器功率Pneumatic conveying system feeder power | 2.2kW |
电动葫芦功率 Electric hoist power | 4.9kW |
振动电机功率 Vibration motor power | 0.15kW |
最大吨袋包装袋规格The maximum specifications of bulk bags | 2000kg |
电动葫芦规格Electric hoist specifications | 3t |
空压机 Air compressor power | 1.8kW |
连续式吨袋破包机整机重量 The whole weight | 3990kg |
外形尺寸(工作状态:L×W×H)mm: Overall dimension (operative: L x W x H)mm | 5250 mm×2100 mm×7350 mm |
拆袋效率Discharge rate(袋/小时bags/hours) | 10~20(1t bag) |
设备总功率total power | 40kW |
The pneumatic conveying equipment transport horizontal distance≤10 meters , vertical distance ≤20 meters elbow ≤3 months, delivery to the rotary valve through the screw conveyor, along the pipelines transported to the terminal silos, after the warehouse roof dust filter, clean air directly into the atmosphere.
- Size: 5.2*2.1*7.35
- Place of Origin: Jinan
- Brand Name: JANEOO
- Model Number: DPBJ-L
- Weight: 3900.000 kg
