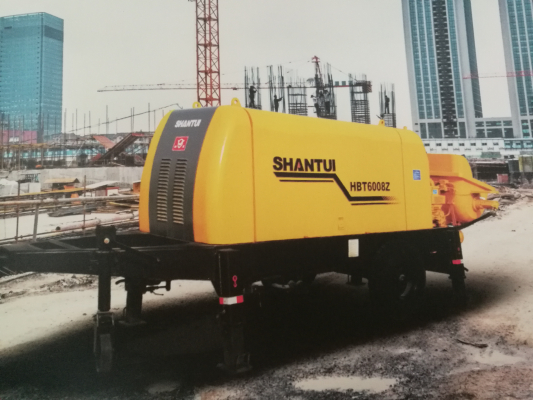

HBT60 Concrete pump truck/Concrete truck pump
Concrete pump tuck• HBT diesel concrete pump work with high efficiency and saving energy,max output 30-90m3/h.• Compact structure small wheel design, flexible movement, convenient movement and simple maintenance.• Intelligent power control system with PLC for safe, smooth and efficient operation.•High delivery pressure to meet demand of high building and long distance projects• Powered by China’s first brand Deutz Dalian, Weichai cost-effective products.• Widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on.• S valve casting alloy materials used, durability, making more prominent pump performance, lower cost.
Model | HBT60 | HBT80 | HBT90 |
Conveying capacity | 55m3 | 88/49m3 | 90/52m3 |
Maximum theoretical output preasure | 6.7Mpa | 8/16Mpa | 10/18Mpa |
Concrete distribution valve | oblique-type gate valve | S valve | S valve |
Maximum aggregate size | 40(125A)mm | 40(125A)mm | 40(125A)mm |
Concrete slump range | 80-230mm | 80-230mm | 80-230mm |
Hoppercapacity/loading height | 380/1400mm | 800/1470mm | 800/1470mm |
Power/speed | 55/1480kw/r/min | 174/2300kw/r/min | 110/1480kw/r/min |
Overall dimensions | 6000*1970*2150mm | 6893*2060*2640mm | 7185*2056*2635 |
