- Size: 31000*8000*16000
- Place of Origin: shandong
- Brand Name: JANEOO
- Model Number: HZSY50BE/HZSY75BE/HZSY25SE/HZSY40SE/HZSY50SE/HZSY75SE
- Weight: 50000.000 kg

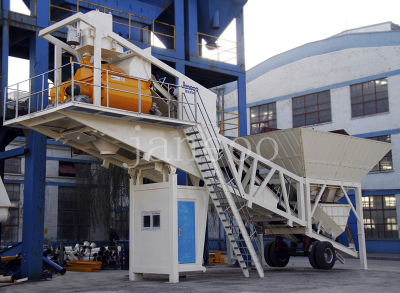

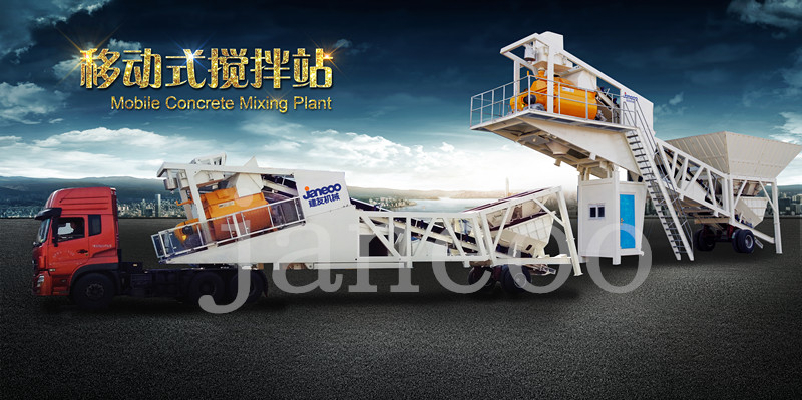

Mobile Concrete Mixing Plant
1.Features:
1.Convenient and quick to assemble and disassemble, rapid and efficient removal, perfect work site adaptability.
2.Compact and reasonable structure, high modularity design;
3.Operation is clear and stable
4.Less land occupation, high productivity;
5.High-end gas circuit and electric circuit configuration, with high reliability;
6.The overall structure is high-end, sedate, atmosphere.
2. Product Specification:
Model | HZSY50BE | HZSY75BE | |||
Theoretical productivity (m³/h) | 50 | 75 | |||
Mixer | Model | JS1000 | JS1500 | ||
Driving power（Kw） | 2X18.5 | 2X30 | |||
Discharging capacity（L） | 1000 | 1500 | |||
The Max. Diameter of the Aggregate( Gravel/Pebble)mm | ≤60/80 | ≤60/80 | |||
Aggregate Bin | Aggregate bin volume (m³) | 4X8 | 4X8 | ||
Belt conveyor capacity( t/h) | 300 | 300 | |||
Weighing range & accuracy | Aggregate(kg) | 3000±2% | 3000±2% | ||
Cement (kg) | 800±1% | 800±1% | |||
Water (kg) | 300±1% | 300±1% | |||
Additive (kg) | 20±1% | 20±1% | |||
Discharging height (m) | 4.0 | 4.0 | |||
Total power consumption (KW) | 68 | 91 | |||
Note：The above parameters are subject to change without prior notice, please refer to the actual product.
Model | HZSY40SE | HZSY50SE | HZSY75SE | ||||
Theoretical productivity (m³/h) | 40 | 50 | 75 | ||||
Mixer
| Model | JS500 | JS750 | JS1000 | JS1500 | ||
Driving power（Kw） | 18.5 | 30 | 2X18.5 | 2X30 | |||
Discharging capacity（L） | 500 | 750 | 1000 | 1500 | |||
The Max. Diameter of the Aggregate( Gravel/Pebble)mm | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | |||
Aggregate Bin | Aggregate bin volume (m³) | 4X4 | 4X4 | 4X4 | 4X4 | ||
Hoist motor power (kw) | 7.5 | 18.5 | 22 | ||||
Weighing range & accuracy
| Aggregate(kg) | 1000±2% | 1500±2% | 2000±2% | 3000±2% | ||
Cement (kg) | 300±1% | 400±1% | 500±1% | 800±1% | |||
Water (kg) | 150±1% | 200±1% | 200±1% | 300±1% | |||
Additive (kg) | 20±1% | 20±1% | 20±1% | 30±1% | |||
Discharging height (m) | 3.8 | 4.1 | 4.1 | ||||
Total power consumption (KW) | 76 | 90 | 120 | ||||
Note：The above parameters are subject to change without prior notice, please refer to the actual product.
- Size: 31000*8000*16000
- Place of Origin: shandong
- Brand Name: JANEOO
- Model Number: HZSY50BE/HZSY75BE/HZSY25SE/HZSY40SE/HZSY50SE/HZSY75SE
- Weight: 50000.000 kg
Model | HZSY50BE | HZSY75BE | |||
Theoretical productivity (m³/h) | 50 | 75 | |||
Mixer | Model | JS1000 | JS1500 | ||
Driving power（Kw） | 2X18.5 | 2X30 | |||
Discharging capacity（L） | 1000 | 1500 | |||
The Max. Diameter of the Aggregate( Gravel/Pebble)mm | ≤60/80 | ≤60/80 | |||
Aggregate Bin | Aggregate bin volume (m³) | 4X8 | 4X8 | ||
Belt conveyor capacity( t/h) | 300 | 300 | |||
Weighing range & accuracy | Aggregate(kg) | 3000±2% | 3000±2% | ||
Cement (kg) | 800±1% | 800±1% | |||
Water (kg) | 300±1% | 300±1% | |||
Additive (kg) | 20±1% | 20±1% | |||
Discharging height (m) | 4.0 | 4.0 | |||
Total power consumption (KW) | 68 | 91 | |||
Note：The above parameters are subject to change without prior notice, please refer to the actual product.
Model | HZSY40SE | HZSY50SE | HZSY75SE | ||||
Theoretical productivity (m³/h) | 40 | 50 | 75 | ||||
Mixer
| Model | JS500 | JS750 | JS1000 | JS1500 | ||
Driving power（Kw） | 18.5 | 30 | 2X18.5 | 2X30 | |||
Discharging capacity（L） | 500 | 750 | 1000 | 1500 | |||
The Max. Diameter of the Aggregate( Gravel/Pebble)mm | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | |||
Aggregate Bin | Aggregate bin volume (m³) | 4X4 | 4X4 | 4X4 | 4X4 | ||
Hoist motor power (kw) | 7.5 | 18.5 | 22 | ||||
Weighing range & accuracy
| Aggregate(kg) | 1000±2% | 1500±2% | 2000±2% | 3000±2% | ||
Cement (kg) | 300±1% | 400±1% | 500±1% | 800±1% | |||
Water (kg) | 150±1% | 200±1% | 200±1% | 300±1% | |||
Additive (kg) | 20±1% | 20±1% | 20±1% | 30±1% | |||
Discharging height (m) | 3.8 | 4.1 | 4.1 | ||||
Total power consumption (KW) | 76 | 90 | 120 | ||||
Note：The above parameters are subject to change without prior notice, please refer to the actual product.
