- Size: 40
- Place of Origin: CN
- Brand Name: JANEOO
- Model Number: HZN75D
- Weight: 15000.000 kg

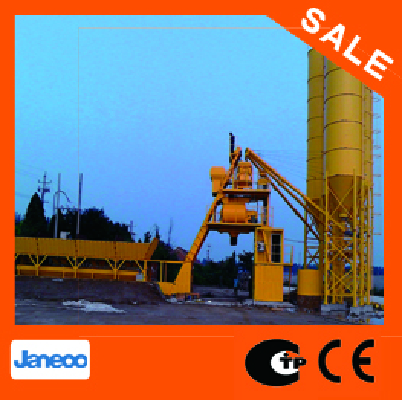

Foundation free concrete batching plant HZN75D
ONE container -----Transportation
D (Foundation free) Series
Features:
1. No concrete foundation
2. Modular design
3. Quick connection of cables and pipelines
Application:
Construction sites often transition
Model | HZN40D | HZS50D | HZS75D | HZS100D | HZS150D | |
Theoretical productivity(m³/h) | 40 | 50 | 75 | 100 | 150 | |
(Mixer) | Model | JN750 | JS1000 | JS1500 | JS2000 | JS3000 |
Power(kW) | 30 | 2x18.5 | 2x30 | 2×37 | 2×55 | |
(m³) Discharge capacity | 0.75 | 1 | 1.5 | 2 | 3 | |
Max.Agg.size(Gravel/pebble mm) | ≤ 60/80 | ≤ 60/80 | ≤ 60/80 | ≤ 60/80 | ≤ 60/80 | |
Agg.bins | Volume (m³) | 4 | 8 | 8 | 20 | 20 |
Hoisting motor power (kW) | 7.5 | 18.5 | 22 | 30 | 45 | |
Scales capacity and accuracy | Aggregate (kg) | 1500±2% | 2000±2% | 3000±2% | 4000±2% | 6000±2% |
Cement (kg) | 400±1% | 500±1% | 600±1% | 1000±1% | 1500±1% | |
Fly ash (kg) | — | 150±1% | 200±1% | 400±1% | 600±1% | |
Water (kg) | — | 200±1% | 300±1% | 400±1% | 600±1% | |
Additive (kg) | 20±1% | 20±1% | 30±1% | 40±1% | 60±1% | |
Discharging height (m) | 3.8 | 4.0 | 4.0 | 4.0 | 4.0 | |
All specification is subject to modification! |
