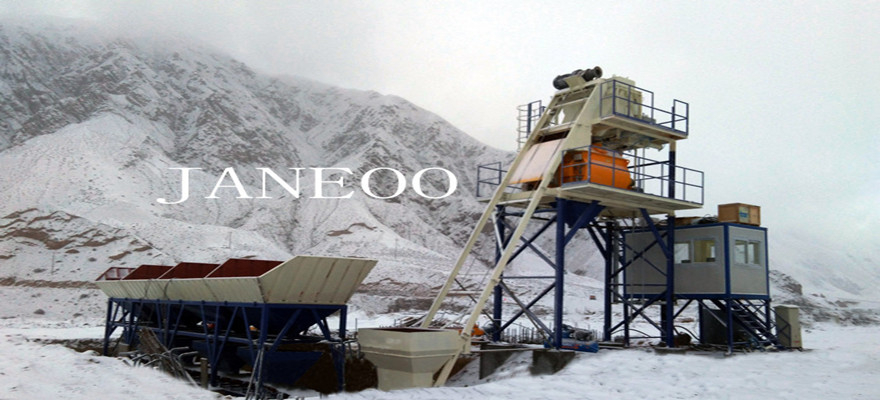

Skip Hoist Concrete Batching Mixing Plant
1. Features:
1.Skip hoist loading type,less land occupation,simplestructure, quick work site transfer, convenient to operation and maintenance.
2.Powder weighing scales adopt pull rod structure to ensure high measyrement accuracy and strong anti-inference ability.
3.The key gas circuit and electric circuit adopt imported brand, with safe and reliable performance.
4.It has backscrolling time protection and self-testtable function with up limit switch.
2. Product Specification:
Model | HZS25E | HZS40E | HZS50E | HZS75E | |
Theoretical productivity(m³/h) | 25 | 40 | 50 | 75 | |
Mixer | Model | JS500 | JS750 | JS1000 | JS1500 |
Power(kW) | 18.5 | 30 | 2x18.5 | 2x30 | |
Discharge capacity(m³) | 0.5 | 0.75 | 1 | 1.5 | |
Max.Agg.size(Grave/pebble mm) | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 | |
Agg.bins | Volume (m³) | 4 | 4 | 8 | 8 |
Hoisting motor power (kW) | 5.5 | 7.5 | 18.5 | 22 | |
Scales capacity and accuracy | Aggregate (kg) | 1500±2% | 1500±2% | 2500±2% | 3000±2% |
Cement (kg) | 300±1% | 500±1% | 500±1% | 800±1% | |
Fly ash (kg) | — | — | 150±1% | 200±1% | |
Water (kg) | 150±1% | 200±1% | 200±1% | 300±1% | |
Additive (kg) | 20±1% | 20±1% | 20±1% | 30±1% | |
Discharging height (m) | 4.0 | 4.0 | 4.0 | 4.0 | |
| Total power(kw) | 57 | 70 | 105 | 130 | |
3. Application:
Suited for road, high speedrail, port, bridge, airport, hydropower engineering and other construction progects.
