- Size: 9.12*1.7*3
- Place of Origin: Jinan
- Brand Name: JANEOO
- Model Number: PBJ-20
- Weight: 3600.000 kg
PBJCement bag breaker
Belt width | 500mm |
Belt power | 2.2kw |
Productivity | 30T/h |
Weight | 3260kg |
L×W×H | 9100X1550X2750mm |
Warranty | 12months |
Brand | Janoo |

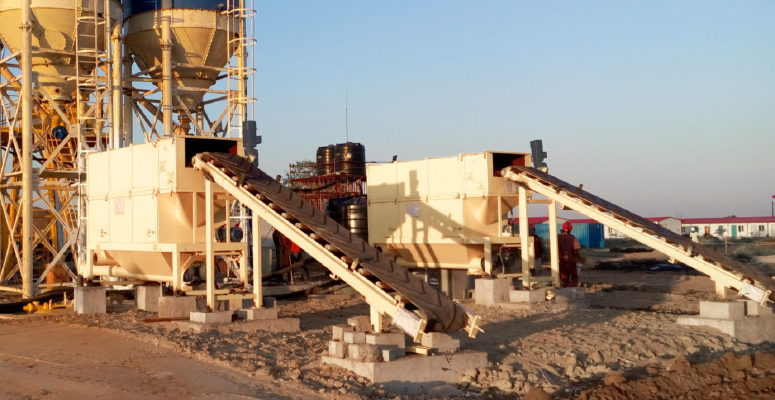

Cement bag breaker is a dedicated cement bag breaker integrated with functions of belt conveyor feeding, cement bag breaking, bag-cement separation and bag and cement delivery. It is used as a corollary equipment for cement storage equipment and is suitable for cement bag breaking in areas without bulk cement supply or with much bag cement usage characterized by high efficiency, environmental protection, easy operation and maintenance.
Model | PBJ |
皮带机带宽 Conveyor belt width | 500mm |
皮带机功率 Belt conveyor power | 2.2kW |
筛分功率 Screening power | 4kW |
送料螺旋机功率 Feeding screw machine power | 5.5kW |
送袋螺旋机功率 Screw feed bag machine power | 1.5kW |
拆包装置功率 Unpacking device power | 2×1.1kW |
除尘装置功率 Filter power | 1.5kW |
空压机 Air compressor power | 1.8kW |
整机重量 Total Weight | 3600kg |
外形尺寸(工作状态:L×W×H)mm: Overall dimension (operative: L x W x H)mm | 9120X1700X3000 |
理论生产率 Max theory Capacity | 详见备注Remarks |
设备总功率total power | 19kW |
Remarks: ormally between 80-300 bags/hour.
The machine capacity depends on the characteristics of the product and the bag composition.
It is normally between 80-300 bags/hour.
- Size: 9.12*1.7*3
- Place of Origin: Jinan
- Brand Name: JANEOO
- Model Number: PBJ-20
- Weight: 3600.000 kg
